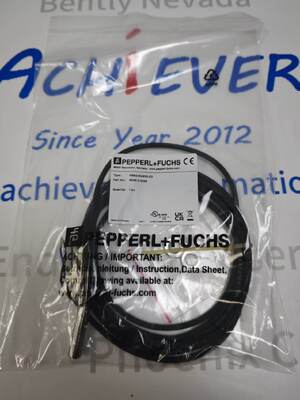

Pepperl+Fuchs NBB2-8GM30-E2 M8 Flush Inductive Proximity Sensor 2mm PNP NO
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : NBB2-8GM30-E2
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Pepperl+Fuchs NBB2-8GM30-E2 is a compact M8 cylindrical flush-mount inductive proximity sensor designed for non-contact detection of ferrous and non-ferrous metal targets in factory automation systems. Featuring a nickel-plated brass threaded barrel with 30mm effective body length, this sensor delivers a 2mm rated flush sensing range with stable repeatability across wide temperature fluctuations from -40°C to +85°C.
Detail:
| Parameter Item |
Technical Specification |
| Full Model Number |
NBB2-8GM30-E2 |
| Manufacturer |
Pepperl+Fuchs |
| Internal Order Code |
052018 |
| Sensor Type |
Inductive Proximity Sensor, Flush Mount |
| Thread Housing Size |
M8 × 1 |
| Rated Sensing Distance (sn) |
2 mm |
| Assured Operating Distance (sa) |
0 ~ 1.62 mm |
| Switching Function |
Normally Open (NO) |
| Output Configuration |
3-Wire DC PNP |
| Supply Voltage Range |
5 VDC ~ 30 VDC |
| Max Switching Load Current |
100 mA |
| Voltage Drop (Ud) |
≤ 1.5 V |
| No-Load Supply Current |
≤ 10 mA |
| Off-State Residual Current |
≤ 0.2 mA |
| Max Switching Frequency |
6000 Hz |
| Typical Hysteresis |
5% of sn |
| Housing Material |
Nickel-Plated Brass |
| Sensing Face Material |
LCP Plastic |
| Body Length |
30 mm, Outer Diameter Ø8 mm |
| Mounting Accessories |
2 Hexagonal Lock Nuts Included |
| Net Weight |
22 g |
| Specification Item |
Technical Value |
| Operating Ambient Temperature |
-40 °C ~ +85 °C |
| Storage Temperature Range |
-40 °C ~ +85 °C |
| Ingress Protection Class |
IP65 / IP66 / IP67 |
| Standard Actuating Target |
Mild Steel (1.0037), 8×8×1 mm |
| Detection Reduction Factor r₃₀₄ Stainless Steel |
0.75 |
| Detection Reduction Factor rAluminum |
0.4 |
| Detection Reduction Factor rCopper |
0.3 |
| Detection Reduction Factor rBrass |
0.45 |
| Circuit Protection |
Reverse Polarity Protection, Pulse Short-Circuit Protection |
| Status Indicator |
Yellow LED Switch State Display |
| Time Delay Before Ready Operation |
≤ 100 ms |
| MTTFd Functional Safety Rating |
960 Years |
| Standard Compliance |
EN IEC 60947-5-2 |
| Certifications |
cULus Listed, RoHS Compliant |
| ECLASS Classification Code |
27274001 |
| Allowable Cable Bending Radius |
>10 × Cable Outer Diameter |
