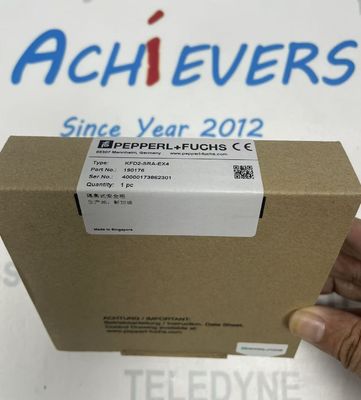

Pepperl Fuchs KFD2-SRA-EX4 channel isolated barrier (switch amplifier)
Description:
Manufacturer : Pepperl+Fuchs
Product No. : KFD2-SRA-EX4
https://www.achievers-automation.com More Products
The Pepperl+Fuchs KFD2-SRA-EX4 is a high-reliability 4-channel isolated barrier (switch amplifier) engineered for safe signal transmission between hazardous and non-hazardous areas in industrial automation systems. As a core offering in Pepperl+Fuchs’ trusted KFD2 series, it specializes in converting and isolating digital signals from NAMUR sensors or dry contacts in explosive environments, delivering stable relay outputs to control-side equipment. Its innovative 2:1 wiring technology cuts field wiring requirements by 50% , while integrated line fault detection (LFD) and reversible operation enhance system uptime and flexibility. With a compact 20mm-wide housing and global hazardous area certifications, this module is ideal for space-constrained control cabinets in oil & gas, chemical, and pharmaceutical facilities where safety and efficiency are critical.
Detail:
| Core Type |
Product Series |
KFD2 |
|
Function |
4-Channel Isolated Barrier / Switch Amplifier |
|
Country of Origin |
Singapore |
| Power Supply |
Rated Voltage |
19–30 V DC |
|
Ripple Tolerance |
≤10% |
|
Rated Current |
45–70 mA |
|
Power Dissipation |
1.2 W |
| Input (Field Side) |
Compatible Devices |
NAMUR sensors (per EN 60947-5-6), dry contacts |
|
Open Circuit Voltage |
Approx. 8 V DC |
|
Short-Circuit Current |
Approx. 8 mA |
|
Switching Point |
1.2–2.1 mA |
|
Switching Hysteresis |
Approx. 0.2 mA |
|
Line Fault Detection |
Yes (open circuit: ≤0.15 mA; short circuit: >6 mA) |
| Output (Control Side) |
Signal Type |
4x Normally Open (NO) Relay Contacts |
|
Contact Rating |
253 V AC / 2 A (cos φ > 0.7); 40 V DC / 2 A (resistive load) |
|
Switching Delay |
Approx. 30 ms (energized/de-energized) |
|
Mechanical Life |
5 × 10⁶ switching cycles |
| Performance |
Switching Frequency |
≤10 Hz (non-AC operation); ≤3 Hz (AC operation) |
|
Galvanic Isolation |
Reinforced insulation (input/output/power supply: 300 V eff) |
| Physical & Environmental |
Dimensions (W×H×D) |
20 × 119 × 115 mm (0.8 × 4.7 × 4.5 in) |
|
Net Weight |
Approx. 150 g |
|
Protection Rating |
IP20 |
|
Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Mounting |
35 mm DIN rail (per EN 60715) |
| Certifications |
Hazardous Area |
Ex II (1) GD (EEx ia) IIC |
|
EMC Compliance |
EN 61326-1:2013 (industrial locations) |
|
Low Voltage Directive |
EN 61010-1:2010 |
