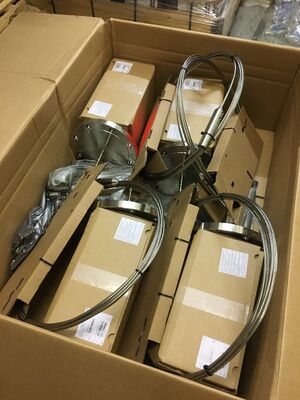

E+H FMP57-2TLM4/0 Levelflex Guided Wave Radar Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMP57-2TLM4/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FMP57-2TLM4/0 is a high-performance guided wave radar (GWR) level transmitter engineered by Endress+Hauser for continuous level monitoring of powdery, granular bulk solids in tall silos, bunkers, and stockpile vessels. Adopting time-of-flight radar measurement principle, the FMP57-2TLM4/0 eliminates measurement interference from dust, filling noise, temperature stratification, and gas layers, delivering stable and precise level data under harsh industrial process conditions.
This model supports long rope probes up to 45 meters, integrated Heartbeat Technology, Bluetooth commissioning via SmartBlue App, and multi-protocol communication output, complying with IEC 61508 SIL3 functional safety standards and global explosion protection certifications.
Detail:
| Parameter Item |
FMP57-2TLM4/0 Specification |
| Product Model |
FMP57-2TLM4/0 (Endress+Hauser / E+H Levelflex series) |
| Measuring Principle |
Guided Wave Radar, Time-of-Flight (ToF) |
| Measured Medium |
Powdery, granular bulk solids (grain, cement, plastic pellets, mineral ore) |
| Max Measuring Distance |
Rod probe: 4m; Rope probe: 20–45m |
| Minimum Dielectric Constant (εr) |
Rod: ≥1.4; Rope 20–25m: ≥1.4; Rope 25–30m: ≥1.6; Rope 30–45m: ≥1.9 |
| Measurement Accuracy |
Rod / Rope ≤15m: ±2mm; Rope >15m: ±10mm |
| Ambient Operating Temperature |
-40°C ~ +80°C (-40°F ~ +176°F) |
| Process Medium Temperature |
-40°C ~ +150°C (-40°F ~ +302°F) |
| Process Pressure Range |
Vacuum ~ 16 bar (Vacuum ~ 232 psi) |
| Power Supply |
2-wire: 10.4–48 VDC; 4-wire: 90–253 VAC optional |
| Communication Protocols |
HART 7, PROFIBUS PA, FOUNDATION Fieldbus, Bluetooth (SmartBlue App) |
| Ingress Protection Class |
IP66 / IP67 |
| Functional Safety Grade |
SIL3 (per IEC 61508) |
| Calibration Support |
3-point / 5-point linearity calibration protocol |
| Mechanical Item |
FMP57-2TLM4/0 Configuration |
| Supported Probe Type |
Solid rod probe / Multi-spec rope probe |
| Standard Rope Probe Specs |
4mm, 6mm, 8mm stainless steel rope |
| Wetted Rod Probe Materials |
316Ti, 316L stainless steel, PEEK, PPS |
| Wetted Rope Probe Materials |
304, 316, 316Ti, 316L stainless steel, PEEK, PPS, PA coating |
| Standard Process Connection |
G3/4 thread, ANSI / DIN flange, Tri-Clamp hygienic fitting |
| Seal Material Options |
EPDM, Viton, Kalrez, Graphite |
| Max Tensile Load (6mm 316 rope probe) |
30kN working load, 42kN rupture load |
| Max Allowable Nozzle Diameter |
≤150mm (6 inch) |
| Transmitter Housing Material |
Aluminum alloy coated anti-corrosion paint |
| Display Module |
Digital local display with operation buttons |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
