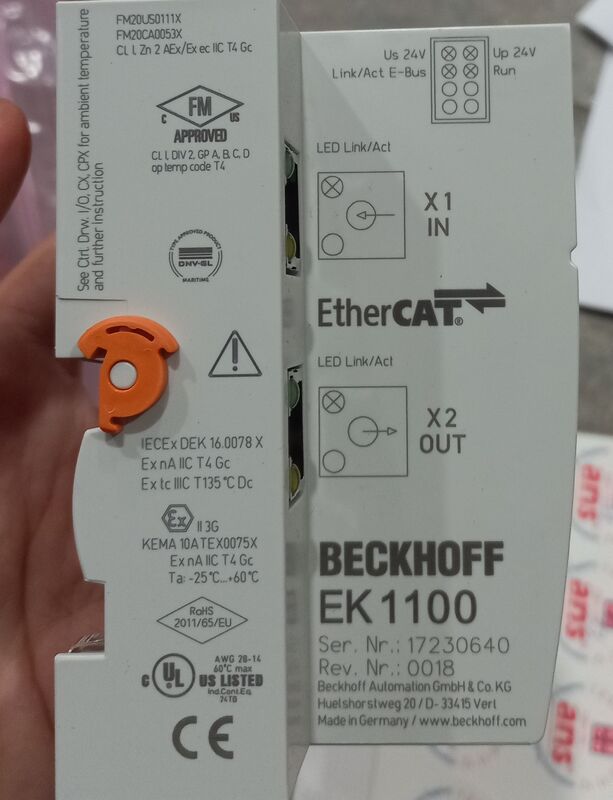

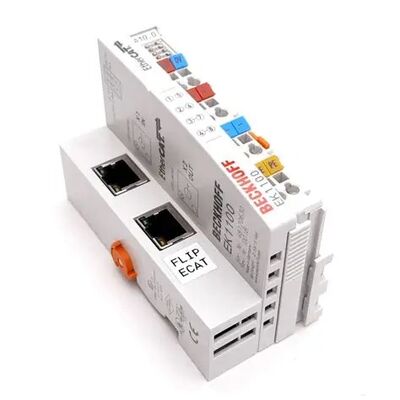

Beckhoff EK1100 EtherCAT Coupler
Product Details:
Manufacturer : Balluff
Product No. : EK1100
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Beckhoff EK1100 is the standard EtherCAT coupler in Beckhoff EK series fieldbus accessories, designed to bridge 100BASE-TX EtherCAT industrial Ethernet networks and E-bus EtherCAT terminal stacks (EL series I/O modules). As a core industrial automation component, EK1100 converts standard Ethernet EtherCAT telegrams to E-bus differential signal transmission, supporting cascading connection of up to 65,535 EtherCAT slave terminals within a single station. Equipped with dual RJ45 copper interfaces, the Beckhoff EK1100 realizes daisy-chain network layout for production lines, packaging machinery, robotic control and process monitoring systems. With 2000mA E-bus power supply output, wide temperature tolerance and global industrial certifications, the EK1100 Beckhoff coupler delivers stable low-latency communication (≈1μs forwarding delay) for high-speed distributed motion control and analog/digital signal acquisition scenarios.
Detail:
| Parameter Item |
EK1100 Standard Value |
| Product Model |
Beckhoff EK1100 |
| Bus Protocol |
EtherCAT (100BASE-TX Ethernet) |
| EtherCAT Interface |
2 × RJ45 female socket (IN / OUT) |
| Transmission Rate |
100 Mbit/s full-duplex |
| Max Station-to-Station Cable Length |
100 m (Cat.5 shielded Ethernet cable) |
| Signal Forwarding Delay |
Approx. 1 μs |
| Max Supported EtherCAT Terminals |
65,535 per EtherCAT network segment |
| Supply Voltage (Us) |
24 V DC (-15% / +20% tolerance) |
| Coupler No-Load Current Draw |
60 mA |
| E-bus Output Current |
2000 mA |
| Max Power Contact Load |
10 A / 24 V DC |
| Electrical Isolation Strength |
500 V DC (Power / EtherCAT / E-bus) |
| Wiring Terminal Type |
Screw spring terminal |
| Solid Wire Wiring Range |
0.08 ~ 2.5 mm² (AWG28 ~ AWG14) |
| Stranded Wire Wiring Range |
0.08 ~ 2.5 mm² (AWG28 ~ AWG14) |
| Ferrule Wire Wiring Range |
0.14 ~ 1.5 mm² (AWG26 ~ AWG16) |
| Wire Stripping Length |
8 ~ 9 mm |
| Parameter Item |
EK1100 Standard Value |
| Overall Dimensions (W × H × D) |
44 mm × 100 mm × 68 mm |
| Net Weight |
~190 g |
| Mounting Standard |
EN 60715 35 mm DIN rail |
| Protection Class |
IP20 (indoor cabinet use only) |
| Operating Ambient Temperature |
-25 °C ~ +60 °C |
| Storage / Transport Temperature |
-40 °C ~ +85 °C |
| Allowed Relative Humidity |
95% RH, non-condensing |
| Vibration Compliance |
EN 60068-2-6 |
| Shock Resistance Compliance |
EN 60068-2-27 |
| EMC Standard |
EN 61000-6-2, EN 61000-6-4 |
| Global Certifications |
CE, UL, cULus, CCC, ATEX II 3 G Ex ec IIC T4 Gc, IECEx, DNV GL |
| Explosion-Proof Mark |
ATEX / IECEx Ex nA IIC T4 Gc |
| Allowed Installation Position |
Any orientation inside control cabinet |
