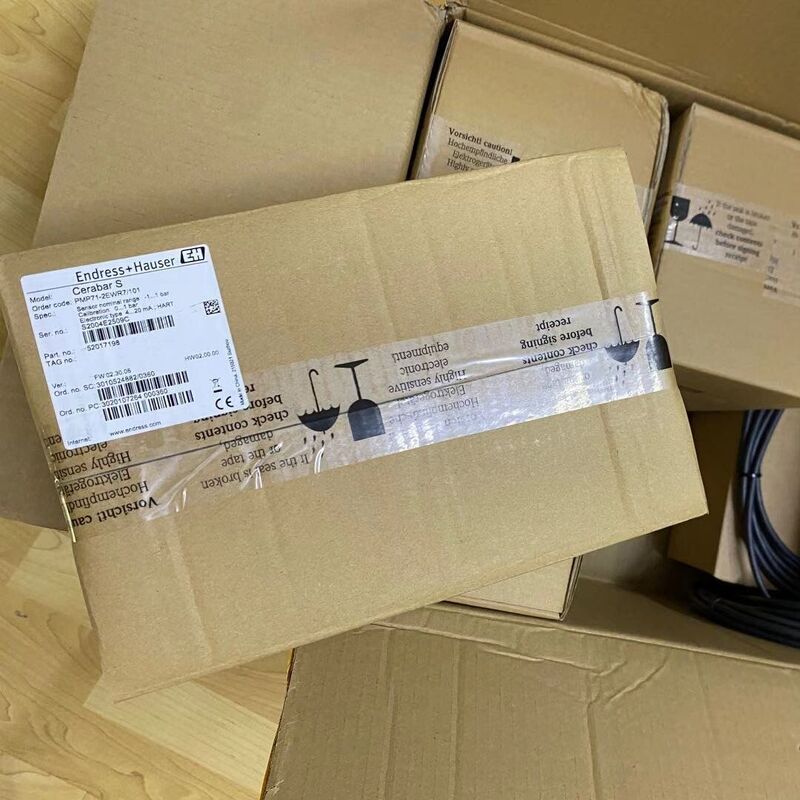

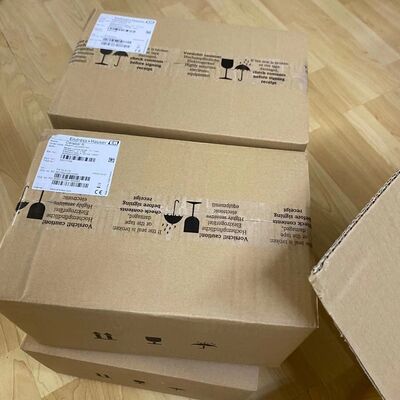

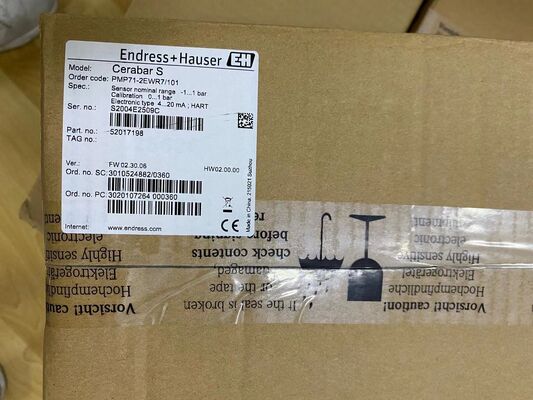

E+H PMP71-2EWR7/101 Pressure Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : PMP71-2EWR7/101
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H PMP71-2EWR7/101 is a high-performance pressure transmitter belonging to Endress+Hauser’s (E+H) Cerabar PMP71 series, engineered for precise and continuous measurement of gauge pressure, absolute pressure, and differential pressure in liquids, vapors, and gases across a wide range of industrial applications. As a globally trusted manufacturer of process measurement and automation solutions, E+H designs the PMP71-2EWR7/101 with advanced piezoresistive sensor technology and a rugged housing, ensuring exceptional accuracy, long-term stability, and reliability even in harsh industrial environments. This page provides detailed technical specifications, core features, and application insights to help engineers and technical professionals make informed selection decisions, aligned with industry best practices and Google SEO standards.
Detail:
|
Specification Category
|
Details for E+H PMP71-2EWR7/101
|
|
Product Model
|
PMP71-2EWR7/101
|
|
Manufacturer
|
Endress+Hauser (E+H)
|
|
Product Series
|
Cerabar PMP71
|
|
Device Type
|
Pressure Transmitter (Gauge/Absolute/Differential)
|
|
Standards Compliance
|
IEC 61508 (SIL 2), ATEX, IECEx, CSA, FM
|
|
Accuracy (Standard)
|
±0.075% of span
|
|
Output Signal
|
4-20 mA with HART 7
|
|
Power Supply
|
12-45 VDC (HART)
|
|
Operating Temperature (Electronics)
|
-40 °C to +85 °C (-40 °F to +185 °F)
|
|
Storage Temperature
|
-40 °C to +100 °C (-40 °F to +212 °F)
|
|
Certifications
|
ATEX, IECEx, CSA, FM, WHG, Hygienic Approvals
|
|
Specification Category
|
Details for E+H PMP71-2EWR7/101
|
|
Sensor Type
|
Piezoresistive Sensor with Welded Metallic Membrane
|
|
Process Membrane Material
|
316L Stainless Steel, Alloy C276, Tantalum
|
|
Main Wetted Parts
|
316L Stainless Steel, Alloy C276
|
|
Pressure Measuring Range
|
0.1 mbar to 400 bar (0.0015 psi to 5800 psi)
|
|
Overload Resistance
|
Up to 500 bar (50 MPa / 7250 psi)
|
|
Process Connections
|
Threaded Connections (G 1/2", NPT 1/2")
|
|
Enclosure Protection Rating
|
IP67 (NEMA 4X), Optional IP68
|
|
Vibration Resistance
|
10 g (10-2000 Hz), 50 g (6 ms shock)
|
|
Weight (Approx.)
|
1.1 kg (2.43 lbs) without process connections
|
|
Installation Position
|
Any position; recommended: membrane horizontal
|
|
Process Temperature Range
|
-40 °C to +150 °C (-40 °F to +302 °F)
|
|
Humidity Range
|
0-100% RH (non-condensing)
|
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
