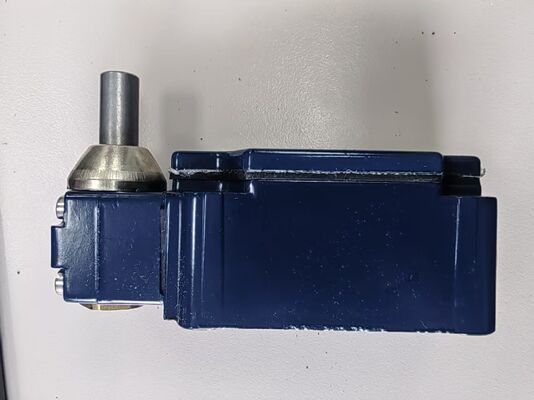

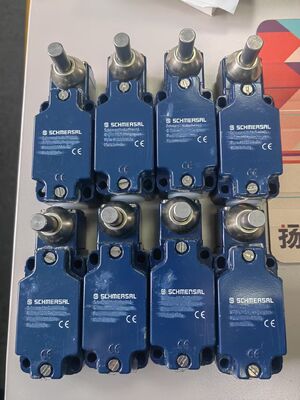

Schmersal 330-11Y-M20 Limit Switch
Description:
Manufacturer : Schmersal
Product No. :330-11Y-M20
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

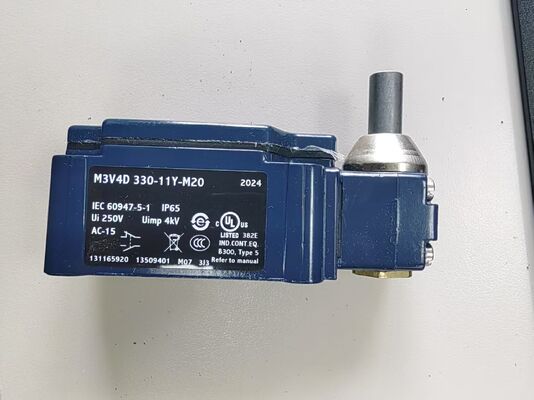

The Schmersal M3V4D 330-11Y-M20 is a high-performance mechanical limit switch designed for industrial applications that demand reliability, durability, and precise operation. As a trusted product from Schmersal—a leading manufacturer of industrial safety and control components—the M3V4D 330-11Y-M20 delivers consistent performance in harsh industrial environments, making it ideal for power stations, and other heavy-duty machinery applications. This page provides detailed technical specifications, core features, and application insights to help engineers and technical professionals make informed decisions.
Detail:
|
Specification Category
|
Details for Schmersal M3V4D 330-11Y-M20
|
|
Product Model
|
M3V4D 330-11Y-M20
|
|
Manufacturer
|
Schmersal
|
|
Article Number (Order Number)
|
101165920
|
|
Working Principle
|
Mechanical, Slide Form, Castor
|
|
Standards Compliance
|
EN IEC 60947-5-1
|
|
Certifications
|
cULus, CCC
|
|
Number of Contacts
|
1 Normally Open (NO), 1 Normally Closed (NC)
|
|
Switching Principle
|
Snap Action
|
|
Contact Material
|
Silver
|
|
Thermal Test Current
|
6 A
|
|
Utilisation Category AC-15
|
230 VAC, 2.5 A
|
|
Rated Insulation Voltage (Ui)
|
500 V
|
|
Rated Impulse Withstand Voltage (Uimp)
|
4 kV
|
|
Bounce Duration (Maximum)
|
1.5 ms
|
|
Switchover Time (Maximum)
|
10 ms
|
|
Specification Category
|
Details for Schmersal M3V4D 330-11Y-M20
|
|
Housing Material
|
Light-alloy diecast, paint finish
|
|
Actuating Element
|
Forked Roller Lever
|
|
Roller Material
|
Plastic
|
|
Mechanical Lifetime (Minimum)
|
30,000,000 operations
|
|
Contact Opening
|
2 x 0.5 mm
|
|
Minimum Actuating Speed
|
1 mm/min
|
|
Actuating Torque
|
0.5 Nm
|
|
Repeat Accuracy of Switching Points
|
0.02 mm
|
|
Termination
|
Screw Terminals M20 x 1.5
|
|
Cable Section (Minimum/Maximum)
|
1.5 mm² / 2.5 mm²
|
|
Wire Cross-Section (AWG)
|
13 AWG
|
|
Dimensions (Basic Component)
|
40 mm x 76 mm x 40 mm
|
|
Gross Weight
|
305 g
|
|
IP Protection Rating
|
IP65
|
|
Ambient Temperature Range
|
-30 °C to +90 °C
|
|
Shock Resistance
|
50 g / 6 ms
|
Brand
