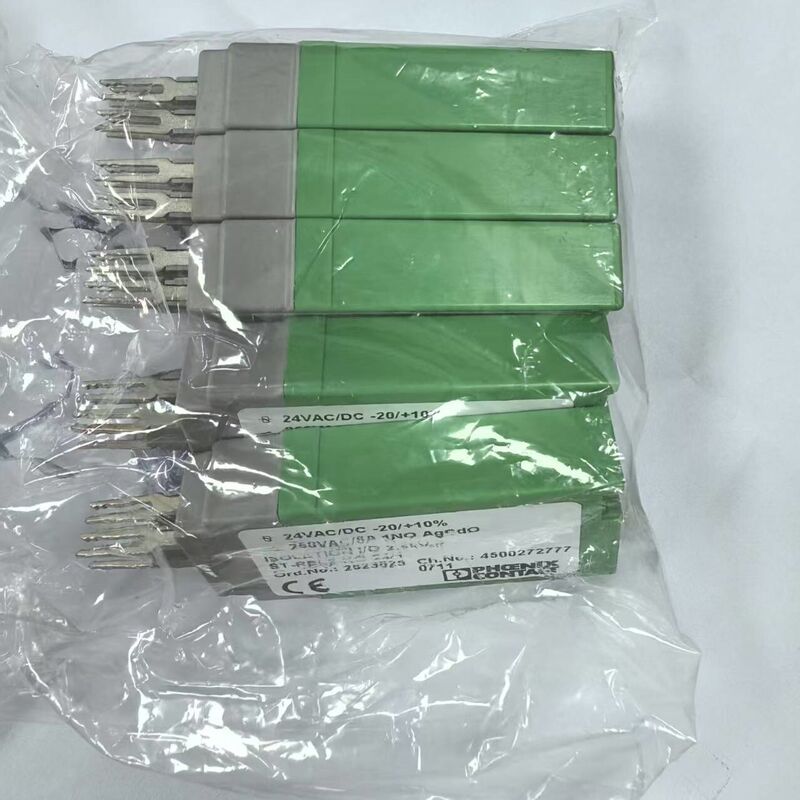

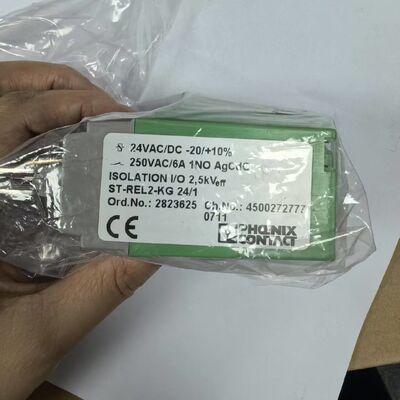

Phoenix Contact ST-REL2-KG 24/1 2823625 Relay Connector
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2823625
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact ST-REL2-KG 24/1 2823625 is a high-reliability relay connector equipped with a miniature switching relay, designed for seamless integration into industrial automation systems. As a key product in Phoenix Contact’s relay connector lineup, it features a 24V AC/DC input voltage, 1 normally open (N/O) contact, and a built-in light indicator for easy status monitoring. This relay connector is engineered for plug-in installation on basic terminal blocks, ensuring quick assembly and maintenance, while its robust construction delivers consistent performance in harsh industrial environments — a critical advantage for businesses prioritizing reliability and efficiency in control setups.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
Relay Connector (with Miniature Switching Relay)
|
|
Product Family
|
Relay Connectors
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model & Part Number
|
ST-REL2-KG 24/1 2823625
|
|
Mounting Type
|
Pluggable (on Basic Terminal Blocks)
|
|
Input Type
|
24V AC/DC (Dual Input)
|
|
Contact Configuration
|
1 Normally Open (N/O) Contact
|
|
Contact Material
|
AgNi (Silver-Nickel)
|
|
Operating Temperature Range
|
-40°C to +85°C
|
|
Degree of Protection
|
IP20
|
|
Flammability Rating (Housing)
|
UL 94 V0
|
|
Mechanical Service Life
|
Approx. 2×10⁷ Cycles
|
|
Performance Parameter
|
Value
|
|
Nominal Input Voltage (Uₙ)
|
24V AC/DC
|
|
Input Voltage Range (20°C)
|
19.2V AC/DC – 26.4V AC/DC
|
|
Typical Input Current at Uₙ
|
21 mA
|
|
Maximum Power Dissipation (Nominal Condition)
|
0.5 W
|
|
Test Voltage (Coil/Contact)
|
2.5 kV AC (50 Hz, 1 min)
|
|
Typical Response Time (DC)
|
7 ms
|
|
Typical Release Time (DC)
|
11 ms
|
|
Maximum Switching Voltage
|
250 V AC/DC
|
|
Limiting Continuous Current
|
6 A
|
|
Maximum Inrush Current
|
8 A
|
|
Maximum Rated Power (Resistive Load)
|
95 W (24V DC)
|
|
Operating Mode
|
100% Operating Factor
|
