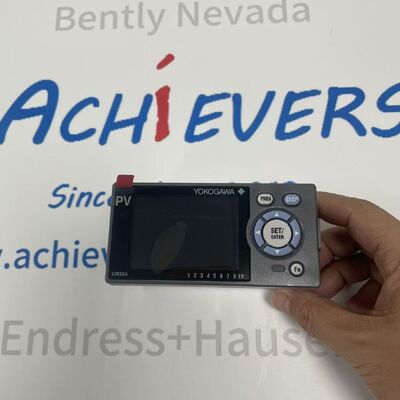

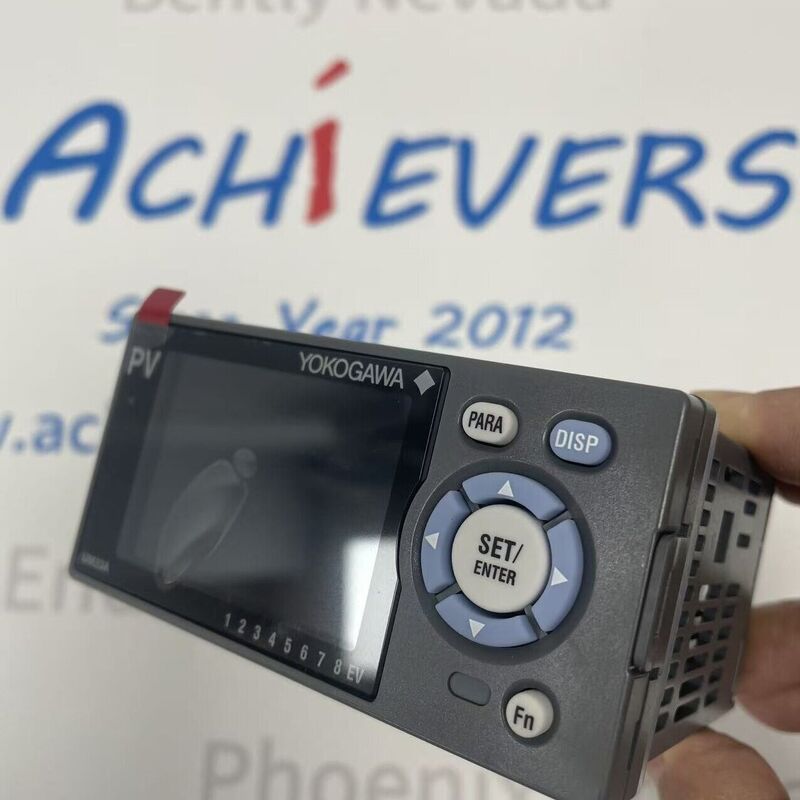

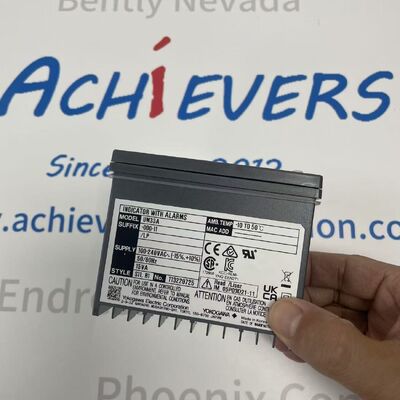

YOKOGAWA UM33A-000-11LP High-Performance Industrial Digital Indicator
Product Details:
Manufacturer : YOKOGAWA
Product No. : UM33A-000-11LP
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The YOKOGAWA UM33A-000-11LP is a next-generation digital indicator with integrated alarm functions, part of Yokogawa’s UTAdvanced series. Designed for industrial panel-mounted monitoring, this model delivers precise process visualization, flexible alarm capabilities, and robust construction to ensure reliable operation in diverse industrial environments. YOKOGAWA, a global leader in industrial automation solutions, engineers the UM33A-000-11LP to meet the rigorous demands of modern manufacturing, wastewater treatment, and process control applications, combining user-friendly operation with advanced technical performance.
Detail:
|
Parameter
|
Details
|
|
Manufacturer
|
YOKOGAWA Electric Corporation
|
|
Model Number
|
UM33A-000-11LP
|
|
Product Type
|
Digital Indicator with Alarms (UTAdvanced Series)
|
|
Display
|
14-segment, 5-digit color LCD; active color-changing function (white/red); scrollable parameter names
|
|
Power Supply
|
100-240VAC (+10%/-15%), 50/60Hz; or 24VAC/DC (+10%/-15%) (DC option)
|
|
Power Consumption
|
Max. 15VA (DC: 7VA, AC: 11VA with DC option)
|
|
Ambient Temperature (Operating)
|
0 to 50°C
|
|
Protection Class
|
Front panel: IP66 / NEMA 4 (hose-down test only)
|
|
Dimensions (W×H×D)
|
96×48×65mm (depth from panel face, excluding rear projections)
|
|
Panel Cutout
|
92×45mm (W×H)
|
|
Housing Material
|
Polycarbonate, UL94V-0 flame retardant
|
|
Case Color
|
Black (light charcoal gray) – standard for UM33A-000-11LP
|
|
Weight
|
Max. 0.5kg
|
|
Warranty
|
3 years from factory shipment
|
|
Compliance
|
RoHS, WEEE compliant
|
|
Parameter
|
Details
|
|
Universal Input
|
1-channel, compatible with TC, RTD, mV, V, mA signals
|
|
Input Accuracy
|
±0.1% of full scale
|
|
Control Scan Period
|
50ms / 100ms / 200ms (selectable)
|
|
Digital Inputs
|
2 points, no-voltage contact or transistor contact; supports PV peak/bottom value reset
|
|
Alarm Outputs
|
3×1a contacts (standard); expandable to 9 outputs (max); independent common contacts for alarms 1-3
|
|
Retransmission Output
|
1-channel, 4-20mA DC or 0-20mA DC; load resistance ≤600Ω
|
|
Loop Power Supply (LP Option)
|
1-channel, 21.6-28.0VDC; shared with retransmission output
|
|
Communication (Optional)
|
RS-485 (Modbus/RTU, PC link, CC-Link); supports Modbus/RTU master and data monitoring functions
|
|
Input Correction Functions
|
PV bias, polygonal line approximation, polygonal line bias
|
|
Parameter Configuration
|
Navigation keys, programmable function keys; LL50A parameter setting software (sold separately) for advanced configuration
|
|
Data Backup
|
Nonvolatile memory; user-settable default parameter values
|
|
Mounting Attitude
|
Up to 30 degrees above horizontal; no downward tilting allowed
|
|

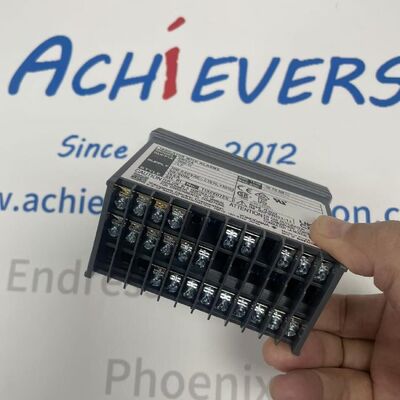

Wiring
|
M3 screw terminals with square washers (for signal and power wiring)
|
