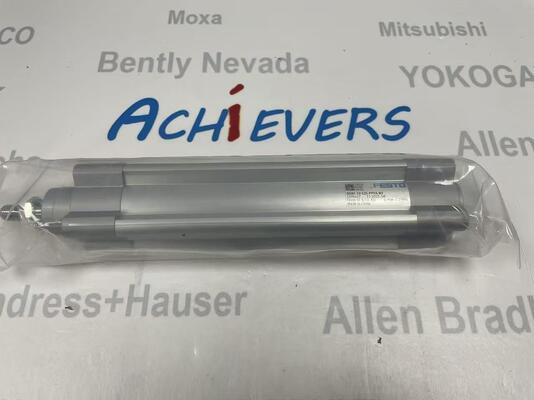

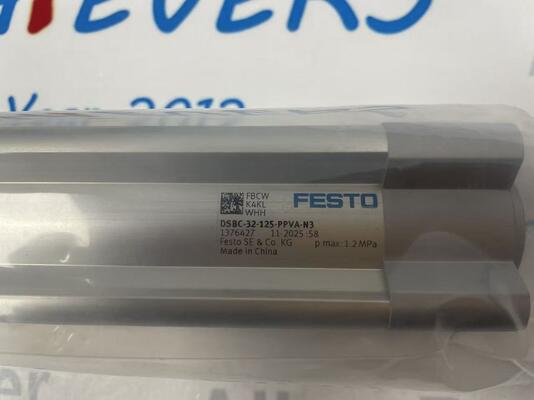

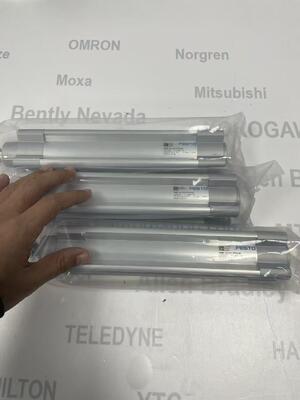

Festo DSBC-32-125-PPV-A-N3 high - performance ISO - standard double - acting pneumatic cylinder
Description:
Manufacturer : Festo
Product No. : DSBC-32-125-PPV-A-N3
https://www.achievers-automation.com More Products
The Festo DSBC - 32 - 125 - PPV - A - N3 is a high - performance ISO - standard double - acting pneumatic cylinder, which is a representative product in Festo's DSBC cylinder series. As a globally leading provider of automation technology and pneumatic components, Festo designs this cylinder in strict accordance with the ISO 15552 standard, ensuring excellent compatibility and interchangeability in industrial applications. With a piston diameter of 32mm and a stroke of 125mm, the cylinder is equipped with adjustable two - end pneumatic cushioning and supports position detection via proximity switches. It is widely used in precision automation fields such as electronic manufacturing, automotive component assembly, packaging machinery, and precision machining. It provides stable linear driving force for various mechanical motion mechanisms and guarantees the accuracy and efficiency of production processes.
Detail:
| Product Model |
DSBC - 32 - 125 - PPV - A - N3 |
| Product Series |
Festo DSBC Series |
| Product Type |
ISO standard double - acting pneumatic cylinder |
| Compliance Standard |
ISO 15552 |
| Working Mode |
Double - acting |
| Piston Diameter |
32 mm |
| Stroke Length |
125 mm |
| Piston Rod Thread |
M10x1.25 |
| Operating Pressure Range |
0.06 MPa - 1.2 MPa (equivalent to 0.6 bar - 12 bar) |
| Ambient Temperature |
-20 °C - 80 °C |
| Theoretical Force at 6 bar |
Advance stroke: 483 N; Retract stroke: 415 N |
| Cushioning Performance |
Pneumatic cushioning, adjustable at both ends; cushioning length of 17 mm |
| End - position Impact Energy |
0.4 J |
| Pneumatic Interface |
G1/8 |
| Position Detection |
Compatible with proximity switches for real - time position feedback |
| Corrosion Resistance Class |
CRC 2 (moderate corrosion resistance) |
| Cleanroom Class |
Class 5, in line with ISO 14644 - 1 |
| PWIS Compliance |
VDMA24364 - B1/B2 - L |
| Moving Mass |
223 g; 110 g for 0 mm stroke, additional 9 g per 10 mm stroke |
| Product Weight |
803 g; 465 g for 0 mm stroke, additional 27 g per 10 mm stroke |
| Mounting Method |
Installed via internal thread, compatible with matching accessories |
| Cover Material |
Coated die - cast aluminum |
| Piston Material |
Wrought aluminum alloy |
| Piston Rod Material |
High - alloy steel |
| Piston Seal Material |
TPE - U (PU) |
| Cylinder Barrel Material |
Smooth anodized wrought aluminum alloy |
| Buffer Piston Material |
Polyoxymethylene (POM) |
| Nut Material |
Galvanized steel |
| RoHS Compliance |
RoHS - compliant |
