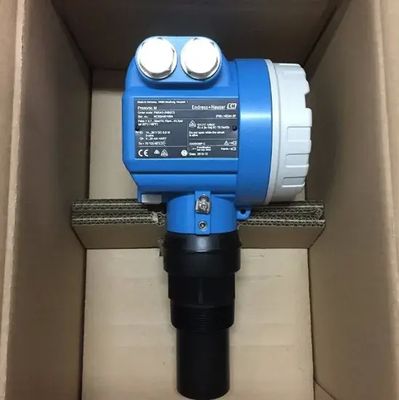

Endress Hauser FMU40-ARB1A2 Prosonic Ultrasonic Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMU40-ARB1A2
https://www.achievers-automation.com More Products
The FMU40-ARB1A2 is a high-performance ultrasonic level transmitter from Endress+Hauser (E+H), part of the trusted Prosonic FMU40 series. It employs time-of-flight (ToF) measurement technology to enable non-contact detection of liquids, slurries, and bulk solids, eliminating the risk of medium contamination. This cost-effective device is engineered for sophisticated level measurement in complex industrial environments, featuring a chemically resistant PVDF sensing element and a rugged aluminum housing rated IP68. Equipped with a four-line plain text display (supporting 7 languages) and on-site operation capabilities, it simplifies commissioning and troubleshooting through envelope curve visualization. With seamless HART communication integration and 32-point linearization, it easily connects to process control systems, making it ideal for storage tanks, agitators, silos, and open channel flow applications.
Detail:
| Basic Information |
Brand |
Endress+Hauser (E+H) |
|
Model |
FMU40-ARB1A2 |
|
Product Series |
Prosonic FMU40 |
|
Measurement Principle |
Time-of-Flight (ToF) ultrasonic technology |
|
Certifications |
Suitable for non-hazardous areas |
| Measurement Performance |
Measuring Range |
Liquids: 0.25–5m; Bulk solids: 0.25–2m |
|
Accuracy |
±2mm or ±0.2% of the set measuring range |
|
Resolution |
1mm |
|
Blind Zone |
0.25m (liquids and solids) |
| Electrical Parameters |
Supply Voltage/Communication |
2-wire, 4–20mA loop with HART protocol |
|
Display Function |
LC display (VU 331) with on-site operation; 7 languages supported; Envelope curve visualization |
| Mechanical Structure |
Process Connection |
G1½" thread (ISO 228) |
|
Sensor Material |
PVDF (chemically resistant) |
|
Housing Material |
Coated aluminum F12 housing |
|
Screw Union/Entry |
M20x1.5 screw union |
|
Mounting Type |
Threaded mounting; Compatible with remote display/operation (up to 20m distance) |
|
Weight |
Approx. 2.5 kg (shipping weight: 3.5 kg) |
| Environmental & Operational Limits |
Operating Temperature |
-40°C to +80°C (-40°F to 176°F) |
|
Process Pressure (Absolute) |
0.7–3 bar abs (10–44 psi) |
|
Protection Level |
IP68 (NEMA 6P) |
| Intelligent Features |
Compensation |
Built-in temperature sensor for automatic sound velocity correction |
|
Calibration |
32-point linearization; No filling/discharging required for setup |
|
Software Support |
Compatible with FieldCare software for remote operation and diagnosis |
