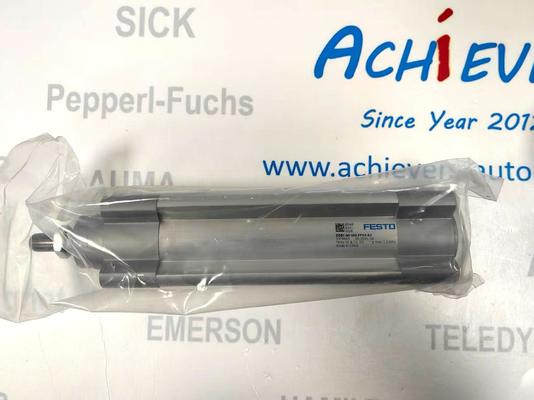

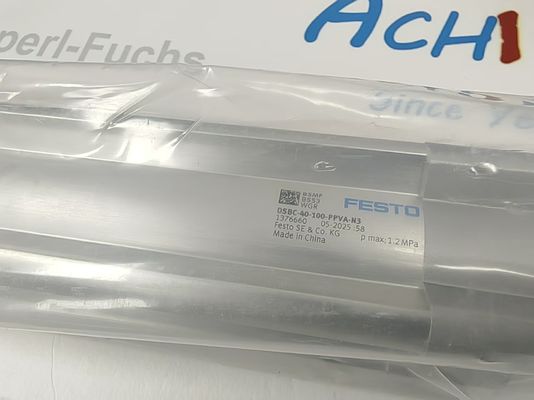

Festo DSBC-40-100-PPVA-N3 precision-engineered ISO standard profile cylinder
Description:
Manufacturer : Festo
Product No. : DSBC-40-100-PPVA-N3
https://www.achievers-automation.com More Products
The Festo DSBC-40-100-PPVA-N3 is a precision-engineered ISO standard profile cylinder designed for reliable linear motion in industrial automation. Compliant with ISO 15552 (and equivalent standards like VDMA 24562), this double-acting cylinder features a 40 mm piston diameter and 100 mm stroke, delivering consistent force output for tasks such as clamping, positioning, and material handling. Equipped with adjustable pneumatic cushioning at both ends, it minimizes end-position impact and operational noise, while its robust construction ensures durability in moderate corrosion stress environments. With integrated sensor slots for position detection and versatile mounting options, it seamlessly integrates into production lines, assembly systems, and general industrial machinery.
Detail:
| Brand & Model |
Festo DSBC-40-100-PPVA-N3 (Symbol: 00991235) |
| Type |
ISO Standard Profile Cylinder, Double-Acting, Single Piston Rod |
| Core Dimensions |
- Piston Diameter: 40 mm
- Stroke Length: 100 mm
- Cushioning Length: 19 mm |
| Operating Parameters |
- Operating Pressure: 0.6 bar (0.06 MPa) to 12 bar (1.2 MPa)
- Ambient Temperature: -20 °C to 80 °C
- Operating Medium: Compressed air (ISO 8573-1:2010 Class 7:4:4)
- Lubrication: Optional (consistent use required if lubricated) |
| Force Output |
- Theoretical Force (Advance Stroke, 6 bar): 754 N
- Theoretical Force (Return Stroke, 6 bar): 633 N |
| Mechanical Data |
- Basic Weight (0 mm Stroke): 740 g
- Total Weight (100 mm Stroke): 1090 g
- Additional Weight per 10 mm Stroke: 35 g
- Moving Mass (0 mm Stroke): 205 g
- Additional Moving Mass per 10 mm Stroke: 16 g
- Piston Rod Thread: M12 x 1.25 (External) |
| Materials |
- Cylinder Barrel: Smooth-anodised wrought aluminium alloy
- Piston: Wrought aluminium alloy
- Piston Rod: High-alloy steel
- Seals (Piston/Buffer/Wiper): TPE-U (PU)
- Cover: Coated die-cast aluminium
- Bearing/Nut: POM / Galvanised steel |
| Connections & Mounting |
- Pneumatic Connection: G1/4
- Mounting Type: Via female thread (with accessories)
- Mounting Position: Any orientation |
| Performance & Protection |
- Corrosion Resistance Class: CRC 2 (Moderate corrosion stress)
- Cleanroom Class: ISO 14644-1 Class 5
- Impact Energy (End Positions): 0.7 J
- PWIS Conformity: VDMA 24364-B1/B2-L |
| Certifications & Standards |
- Compliance: ISO 15552, VDMA 24562, RoHS
- Former Standards: ISO 6431, DIN ISO 6431 |
